Tutorial 5: Drilling down on the data

In this tutorial, we'll drill down on the data to further analyze it. This is possible using indicator drills.

What you'll create

An indicator drill inspecting the turnover_value_indicator.

Creating a indicator drill

We already have empty_indicator_drill in our project from the first tutorial, which served as a placeholder so far. Let's create a copy of it and add in some blocks.

Use copyMetadata command to create a copy of the object and then addMetadata command to add it to the project.

TEXT
tomas.schmidl@secure.clevermaps.io/project:k5t8mf2a80tay2ng/dump:$ copyMetadata --objectName empty_indicator_drill --newName turnover_indicator_drill
Object turnover_value_indicator_drill.json successfully created as a copy of object empty_indicator_drill.json

Now, edit the business_overview_dashboard.json so that the turnover_indicator is paired with the new turnover_indicator_drill and use pushProject to push the changes.

Business overview dashboard excerpt
CODE
   ...
        "blockRows": [
            {
                "type": "indicator",
                "indicator": "/rest/projects/$projectId/md/indicators?name=turnover_indicator",
                "indicatorDrill": "/rest/projects/$projectId/md/indicatorDrills?name=turnover_indicator_drill",
                "layout": "primary"
            },
   ...


All the remaining indicators will still be paired with the empty_indicator_drill. However, it's perfectly possible to reuse indicatorDrill objects with as many indicators you like.

For our use case in this tutorial, we will not do this.

Distribution block

The content of turnover_indicator_drill is still empty so far.

Add a distribution block and push the changes. This block tells you the distribution of data across the map.

Indicator drill with added distribution block
CODE
{
    "id": "vgp4kn2foljcec5r",
    "name": "turnover_indicator_drill",
    "type": "indicatorDrill",
    "content": {
        "blocks": [
            {
                "type": "distribution"
            }
        ]
    },
    "accessInfo": {
        "createdAt": "2020-06-29T13:49:06Z",
        "modifiedAt": "2020-06-30T08:18:22Z",
        "createdBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7",
        "modifiedBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7"
    },
    "links": [
        {
            "rel": "self",
            "href": "/rest/projects/k5t8mf2a80tay2ng/md/indicatorDrills/vgp4kn2foljcec5r"
        }
    ]
}

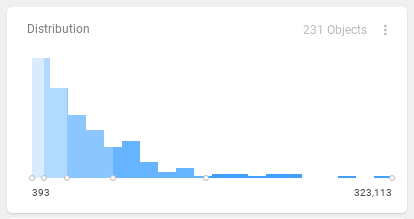

The distribution block has now appeared in the indicator drill.

Ranking block

Add a ranking block and push the object. This block orders all objects in the map based on the value of selected indicator.

Indicator drill with added ranking block
CODE
{
    "id": "vgp4kn2foljcec5r",
    "name": "turnover_indicator_drill",
    "type": "indicatorDrill",
    "content": {
        "blocks": [
            {
                "type": "distribution"
            },
            {
                "type": "ranking"
            }
        ]
    },
    "accessInfo": {
        "createdAt": "2020-06-29T13:49:06Z",
        "modifiedAt": "2020-06-30T08:18:22Z",
        "createdBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7",
        "modifiedBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7"
    },
    "links": [
        {
            "rel": "self",
            "href": "/rest/projects/k5t8mf2a80tay2ng/md/indicatorDrills/vgp4kn2foljcec5r"
        }
    ]
}

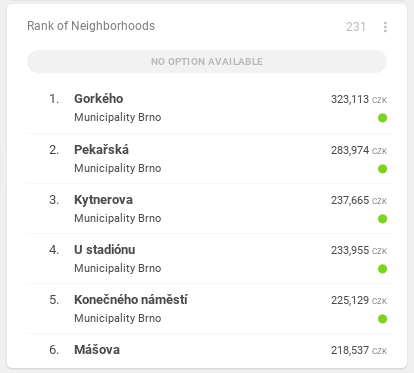

The ranking block has now appeared in the indicator drill.

Time series block

Add a time series block and push the object. This block allows you to see the progress and trend of an indicator in a selected time frame.

Indicator drill with added time series block
CODE
{
    "id": "vgp4kn2foljcec5r",
    "name": "turnover_indicator_drill",
    "type": "indicatorDrill",
    "content": {
        "blocks": [
            {
                "type": "distribution"
            },
            {
                "type": "ranking"
            },
            {
                "type": "timeSeries"
            }
        ]
    },
    "accessInfo": {
        "createdAt": "2020-06-29T13:49:06Z",
        "modifiedAt": "2020-06-30T08:18:22Z",
        "createdBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7",
        "modifiedBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7"
    },
    "links": [
        {
            "rel": "self",
            "href": "/rest/projects/k5t8mf2a80tay2ng/md/indicatorDrills/vgp4kn2foljcec5r"
        }
    ]
}

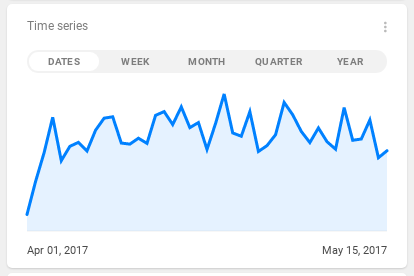

The time series block has now appeared in the indicator drill.

Categories block

The categories block allows you to list specific classes of data within a single indicator. It offers more configuration than the other blocks and can have many varieties.

We will add 3 different categories blocks to explore the possibilities.

categories with dualProperty - age pyramid

basic categories

vertical categories


CODE
{
    "type": "categories",
    "title": "Turnover by customer age and sex",
    "description": "Turnover by customer age and sex",
    "splitProperty": "customers.age_group",
    "orderBy": {
        "property": "customers.age_group",
        "direction": "asc"
    },
    "dualProperty": "customers.sex",
    "label": "Age groups"
}



CODE
{
    "type": "categories",
    "title": "Turnover by channel",
    "description": "Turnover by channel",
    "splitProperty": "transactions.channel"
}



CODE
{
    "type": "categories",
    "title": "Turnover by day of week",
    "description": "Turnover by day of week",
    "splitProperty": "transactions.day_name",
    "orderBy": {
        "property": "transactions.day_index",
        "direction": "asc"
    },
    "vertical": true
}


 In all cases, a splitProperty (property by which data will be split), title and description must be specified.

  • in case of age pyramid - we have to add dualProperty, and a label

  • in case of basic categories - we will not extend the object, but it's possible to make it e.g. condensed by setting the condensed property to true

  • in case of vertical categories - we have to set the vertical property to true

Indicator drill with added categories blocks
CODE
{
    "id": "vgp4kn2foljcec5r",
    "name": "turnover_indicator_drill",
    "type": "indicatorDrill",
    "content": {
        "blocks": [
            {
                "type": "distribution"
            },
            {
                "type": "ranking"
            },
            {
                "type": "timeSeries"
            },
            {
                "type": "categories",
                "title": "Turnover by customer age and sex",
                "description": "Turnover by customer age and sex",
                "splitProperty": "customers.age_group",
                "orderBy": {
                    "property": "customers.age_group",
                    "direction": "asc"
                },
                "dualProperty": "customers.sex",
                "label": "Age groups"
            },
            {
                "type": "categories",
                "title": "Turnover by channel",
                "description": "Turnover by channel",
                "splitProperty": "transactions.channel"
            },
            {
                "type": "categories",
                "title": "Turnover by day of week",
                "description": "Turnover by day of week",
                "splitProperty": "transactions.day_name",
                "orderBy": {
                    "property": "transactions.day_index",
                    "direction": "asc"
                },
                "vertical": true
            }
        ]
    },
    "accessInfo": {
        "createdAt": "2020-06-29T13:49:06Z",
        "modifiedAt": "2020-06-30T08:18:22Z",
        "createdBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7",
        "modifiedBy": "/rest/accounts/00ubfu7fdyIoFKxXm0h7"
    },
    "links": [
        {
            "rel": "self",
            "href": "/rest/projects/k5t8mf2a80tay2ng/md/indicatorDrills/vgp4kn2foljcec5r"
        }
    ]
}

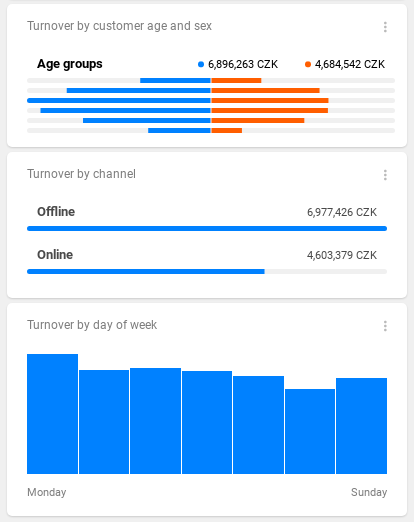

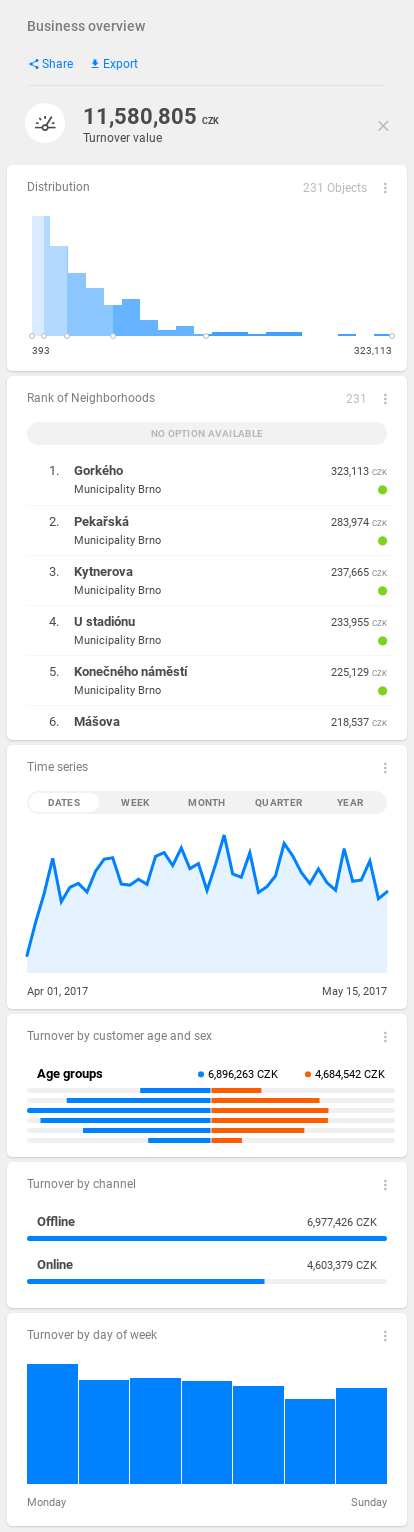

The categories blocks have now appeared in the indicator drill.

Qualitative visualization

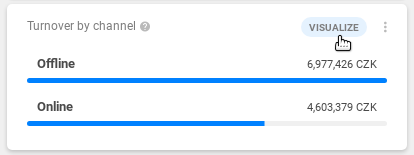

You may have noticed that a Visualize icon appears when you hover the basic categories or vertical categories. This icon enables the qualitative visualization.

Qualitative visualization allows you to colorize objects on the map with a set of predefined colors, based on prevailing category of this object. The object can be an area, grid, zone, line, or a dot.

Some colors are assigned by default. In case of our project, we'll set up the areas with prevailing Online channel to be visualized as green, and Offline as red. The setting is done in the dwh.ref.properties.displayOptions object of the dataset property specified in the splitProperty of the categories block. You can pick any color you like from the given palette (purple, green, orange, blue, turquoise, pink, red, lime and brown).

Transactions dataset excerpt
CODE
    ...
{
    "filterable": true,
    "name": "channel",
    "title": "Channel (online/offline)",
    "column": "channel",
    "type": "string",
    "displayOptions": {
        "valueOptions": [
            {
                "value": "Online",
                "color": "green"
            },
            {
                "value": "Offline",
                "color": "red"
            }
        ]
    }
},
    ...

If you want the qualitative visualization to be active directly after entering the view, set the visualized property of the respective categories block to true.

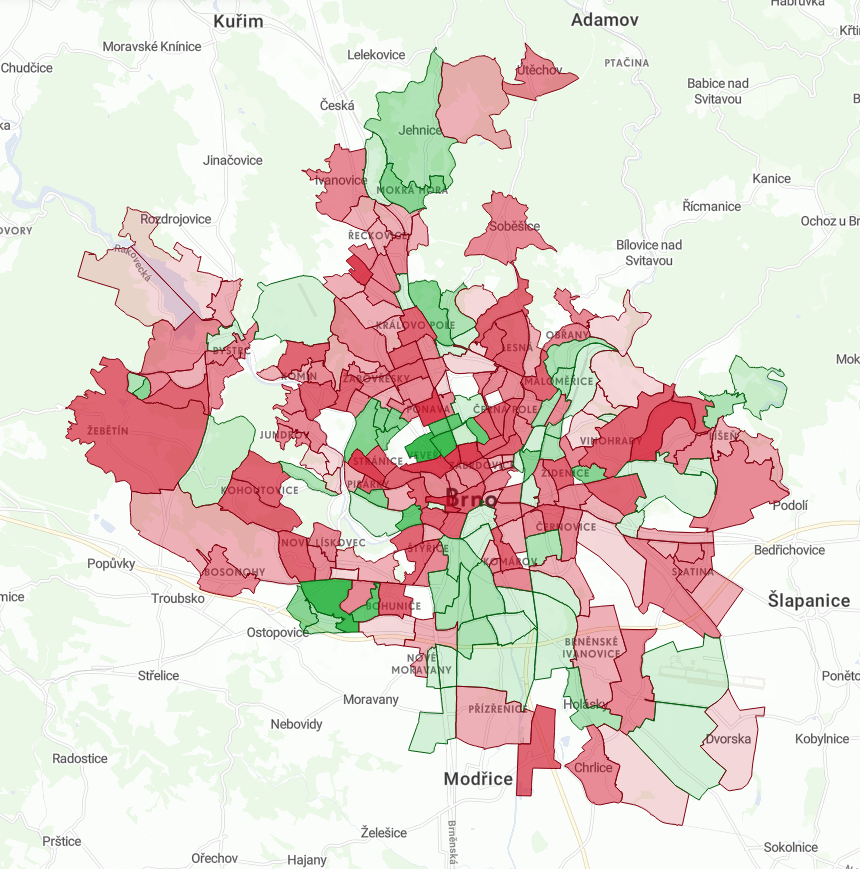

Click on the Visualize icon and the map will become colorized.

Adding drill blocks to dashboard

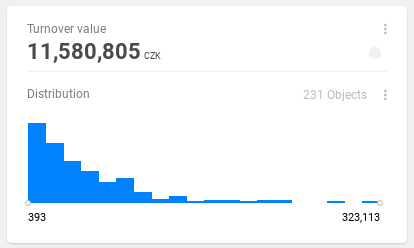

You can add all the blocks directly to dashboard. They will be displayed under your indicator. Edit business_overview_dashboard.json indicator block with turnover_indicator.

CODE
...
                {
                    "type": "indicator",
                    "indicator": "/rest/projects/$projectId/md/indicators?name=turnover_indicator",
                    "indicatorDrill": "/rest/projects/$projectId/md/indicatorDrills?name=turnover_indicator_drill",
                    "layout": "primary",
                    "blockRows": [
                        {
                            "type": "distribution"
                        }
                    ]
                },
...

(tick) That's it! In the next tutorial, we will upload a new dataset - shops, and visualize it using markers.
