An indicator represents a phenomenon that can be displayed on a map. It allows the user to configure how the phenomenon will be displayed. Indicator has a reference to a metric, which is a mathematical expression of the phenomenon. Indicators are further analysed in indicator drills, with whom they are paired with and displayed in a dashboard.

With an object (marker or an area) selected, indicator also shows fitness on a mouse hover. Fitness ranks the object among others and also shows the percentile.

See the combinations of indicator scales and visualizations in action in the Features Catalog for Developers project.

Syntax

This is the Turnover value indicator from the Catchment Area view of the Retail Solution Demo.

You can see that it's linked to the turnover_metric. The coloring scale is standard, distribution of the values is geometric and the format of the value is set to display as British pound.

Indicator object syntax
CODE
{
    "name": "turnover_indicator",
    "type": "indicator",
    "title": "Turnover value",
    "description": "Total turnover of all purchases. It indicates how much money your customers have spent.",
    "content": {
        "metric": "/rest/projects/$projectId/md/metrics?name=turnover_metric",
        "scale": "standard",
        "distribution": "geometric",
        "visualizations": {
    		"heatmap": true,
            "dominance": true
		},
        "format": {
            "type": "number",
            "fraction": 0,
            "symbol": "£"
        }
    }
}


Example of a dumped indicator
CODE
{
    "url": "/rest/projects/yufqzxkbiecj7jot/md/indicators/ckhk3hursnbncsoo",
    "dumpTime": "2018-01-25T14:19:38Z",
    "version": "3",
    "content": {
        "id": "ckhk3hursnbncsoo",
        "name": "turnover_indicator",
        "type": "indicator",
        "title": "Turnover value",
        "description": "Total turnover of all purchases. It indicates how much money your customers have spent.",
        "content": {
            "metric": "/rest/projects/$projectId/md/metrics?name=turnover_metric",
            "scale": "standard",
            "distribution": "geometric",
            "visualizations": {
        		"heatmap": true,
                "dominance": true
		    },
            "format": {
                "type": "number",
                "fraction": 0,
                "symbol": "£"
            }
        },
        "accessInfo": {
            "createdAt": "2017-10-05T08:26:59Z",
            "modifiedAt": "2017-10-13T10:56:44Z"
        },
        "links": [
            {
                "rel": "self",
                "href": "/rest/projects/yufqzxkbiecj7jot/md/indicators/ckhk3hursnbncsoo"
            }
        ]
    }
}

Additional syntax examples

Example of an indicator with scaleOptions.static object
CODE
{
    "name": "turnover_indicator",
    "type": "indicator",
    "title": "Turnover value",
    "description": "Total turnover of all purchases. It indicates how much money your customers have spent.",
    "content": {
        "metric": "/rest/projects/$projectId/md/metrics?name=turnover_metric",
        "scale": "standard",
        "distribution": "geometric",
        "visualizations": {
    		"heatmap": true,
            "dominance": true
		},
        "format": {
            "type": "number",
            "fraction": 0,
            "symbol": "£"
        },
        "scaleOptions": {
            "static": [
                {
                    "dataset": "/rest/projects/$projectId/md/datasets?name=postcodes",
                    "breaks": {
                        "global": [
                            10000,
                            20000,
                            40000,
                            80000
                        ],
                        "selection": [
                            1000,
                            2000,
                            4000,
                            8000
                        ]
                    },
                    "maxValues": [
                        {
                            "zoom": 18,
                            "global": 100000,
                            "selection": 10000
                        }
                    ]
                }
            ]
        }
    }
}

This indicator has the content.scaleOptions.static object set. Few points to note:

  • if no dataset is specified, the breaks will be applied to all datasets (all granularities)

  • it's possible to specify either global or selection values (or both, like in this example)

  • the values specified in breaks object apply to areas, grid, zones, dotmap and line visualizations, whether maxValues apply only to the heatmap visualization


Example of an indicator with scaleOptions.defaultDistribution object
CODE
{
    "name": "turnover_indicator",
    "type": "indicator",
    "title": "Turnover value",
    "description": "Total turnover of all purchases. It indicates how much money your customers have spent.",
    "content": {
        "metric": "/rest/projects/$projectId/md/metrics?name=turnover_metric",
        "scale": "standard",
        "distribution": "geometric",
        "visualizations": {
    		"heatmap": true,
            "dominance": true
		},
        "format": {
            "type": "number",
            "fraction": 0,
            "symbol": "£"
        },
        "scaleOptions": {
            "defaultDistribution": {
                "breaks": [
                    100000,
                    200000,
                    300000,
                    400000,
                    500000,
                    600000
                ],
                "displayIntervals": [
                    0,
                    1,
                    3,
                    4
                ]
            }
        }
    }
}

This indicator has the content.scaleOptions.defaultDistribution object set.

Key description

content

Key

Type

Optionality

Description

Constraints

metric

string

REQUIRED

URL link to the metric object

/rest/projects/$projectId/md/metrics?name={metricName}

scale

string

OPTIONAL

sets the scale coloring, see the examples below

default = standard

[standard, positive, negative, inverse, binaryStandard, binaryNegative, divergingStandard, divergingNegative, divergingWithZeroStandard, divergingWithZeroNegative, heat, heatmap, traffic, trafficInverse, magma, viridis]

distribution

string

OPTIONAL

defines the distribution of the indicator values

default = geometric

[geometric, uniform]

visualizations

object

OPTIONAL

object specifying available visualizations of the indicator


format

object

OPTIONAL

object specifying formatting of the indicator value


relations

object

OPTIONAL

object specifying the relations of the indicator's metric


scaleOptions

object

OPTIONAL

object specifying the scale options

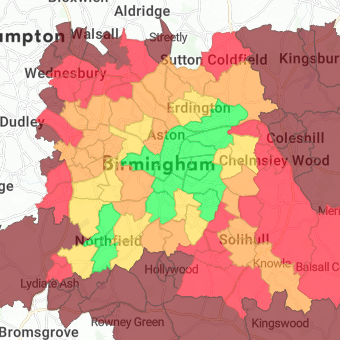

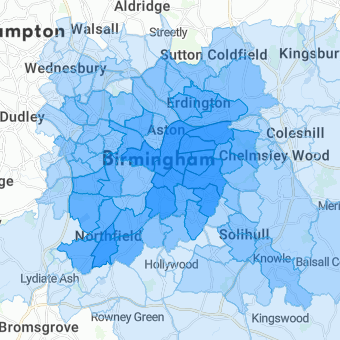

The scale key sets the coloring of the scale. Each scale fits a different use case and indicator values.

  • standard scale has 5 segments and is generally used for any indicator, e.g. average purchase value

  • positive scale has 5 segments and is generally used for positive indicators, e.g. increase of customers

  • negative scale has 5 segments and is generally used for negative indicators, e.g. decrease of customers

  • inverse scale has 5 segments and is the same as standard, but the colors are flipped, it can be used to identify e.g. white spots on a map

  • binaryStandard scale has 2 segments and is used the same way as standard, but just for binary values, e.g. to indicate if there is a shop in the area, or not

  • binaryNegative scale has 2 segments and is used the same way as negative, but just for binary values, e.g. to indicate if the area had a decrease of customers, or not

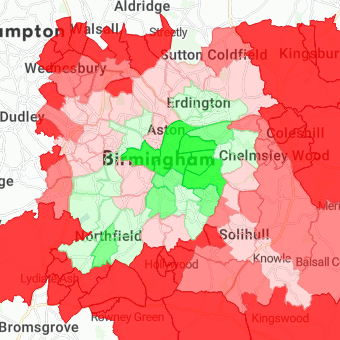

  • divergingStandard scale has 6 segments and is used for indicators that can positive and negative values, e.g. turnover value difference

  • divergingNegative is used the same way as divergingStandard scale, but the colors are flipped, it can be used to indicate e.g. competition turnover value difference

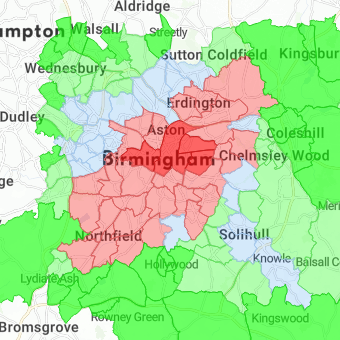

  • divergingWithZeroStandard, divergingWithZeroNegative scales have 5 segments, with a neutral middle segment

  • heat, heatmap, traffic, trafficInverse, magma, viridis scales have 5 segments

See the scales coloring visual representation below.

The distribution affects the intensity of the coloring from the beginning to the end of the scale. The rule of thumb when picking the correct distribution is to try them both, and see what works best for each indicator.

content.visualizations

An indicator can have multiple types of visualizations. Currently, we offer six types of visualizations:

  • areas (based on geometryPolygon subtype dataset)

  • grid (based on geometryPolygon subtype dataset)

  • zones (based on geometryPolygon subtype dataset)

  • heatmap (based on geometryPoint subtype dataset)

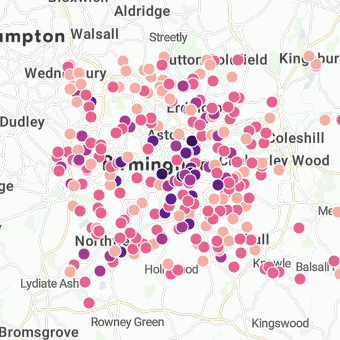

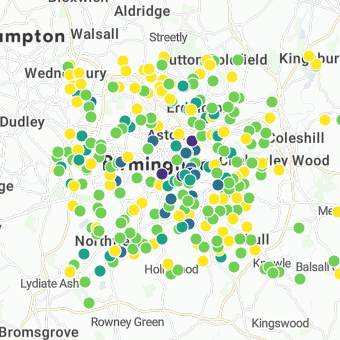

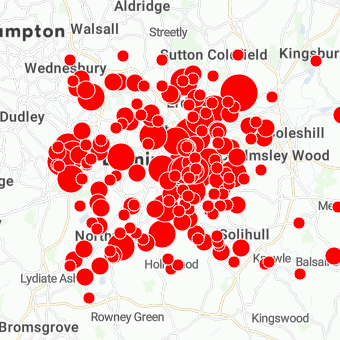

  • dotmap (based on geometryPoint subtype dataset)

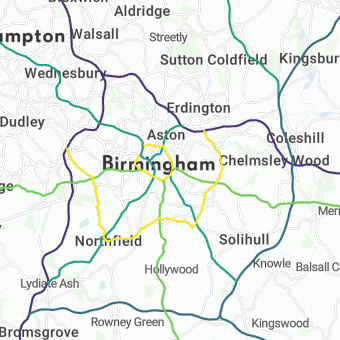

  • line (based on geometryLine subtype dataset)

areas

grid

zones

heatmap

dotmap

line

This object also allows to enable the Dominance visualization in the Compare tool (

).

See the visualization examples below.

Key

Type

Optionality

Description

Constraints

areas

boolean

OPTIONAL

enables areas visualization

[true, false]

grid

boolean

OPTIONAL

enables grid visualization

[true, false]

zones

boolean

OPTIONAL

enables zones visualization

[true, false]

heatmap

boolean

OPTIONAL

enables heatmap visualization

[true, false]

dotmap

boolean

OPTIONAL

enables dotmap visualization

[true, false]

line

boolean

OPTIONAL

enables line visualization

[true, false]

dominance

boolean

OPTIONAL

enables the dominance visualization in the Compare tool

[true, false]

heatmapScaleFactor

decimal

OPTIONAL

sets the scale factor of a heatmap visualization

x => 0.0


For a geometryPoint dataset to appear as a visualization type, the dataset must not be mentioned in any of the view's marker selectors (e.g. typically datasets representing stores, ATMs, etc.).

content.format

Key

Type

Optionality

Description

Constraints

type

string

REQUIRED

type of the format

the number type has no symbol, percentage has "%" symbol

[number, percentage]

fraction

integer

OPTIONAL

the number of places after the decimal point

x => 0

symbol

string

OPTIONAL

types have a predefined symbol, here you can specify your own, e.g. "$"

(*)

content.relations

Used in the case of departures/arrivals metrics. The details can be found in here.

Key

Type

Optionality

Description

Constraints

type

string

REQUIRED

type of the relation

[self]

reversedMetric

string

REQUIRED

URL link to the reversed metric object

/rest/projects/$projectId/md/metrics?name={metricName}

content.scaleOptions

This object is used to set the options of the indicator scale. It allows you to set the default values of its corresponding indicator drill's distribution block.

See complete indicator example above.

Key

Type

Optionality

Description

Constraints

static

array

OPTIONAL

array of static scaleOptions objects, one for each dataset

specifies the default settings of a distribution block

x => 0

defaultDistribution

object

OPTIONAL

specifies the default settings of a distribution block


content.scaleOptions.static

This object sets the inner breaks of the scale interval. These breaks do not change when a filter is applied.

Key

Type

Optionality

Description

Constraints

dataset

string

OPTIONAL

URL link to the dataset representing a granularity, on which the breaks will be applied only

if not specified, the breaks will be applied to all datasets (all granularities)

/rest/projects/$projectId/md/datasets?name={datasetName}

breaks

object

REQUIRED

object representing the break values


maxValues

array

OPTIONAL

array of maximal values for the heatmap visualization scale

x => 0

content.scaleOptions.static.breaks

The values specified in breaks apply to the areas, grid, zones, dotmap and line visualizations.

Key

Type

Optionality

Description

Constraints

global

array

OPTIONAL

array of distribution break values (integer or decimal)

these breaks will be applied when no object is selected

size = 4 (standard, positive, negative, inverse, heat, heatmap, traffic, trafficInverse, magma and viridis scales)

size = 1 (binaryStandard and binaryNegative scales)

size = 5 (divergingStandard, divergingNegative, divergingWithZeroStandard and divergingWithZeroNegative scales)

selection

array

OPTIONAL

array of distribution break values (integer or decimal)

these breaks will be applied when an object is selected (area or a marker)

size = 4 (standard, positive, negative and inverse scales)

size = 1 (binaryStandard and binaryNegative scales)

size = 5 (divergingStandard, divergingNegative, divergingWithZeroStandard and divergingWithZeroNegative scales)

content.scaleOptions.static.maxValues

Values used for tuning the scale of the heatmap visualization. When maxValues are specified, the content.visualizations.heatmapScaleFactor property is ignored.

Key

Type

Optionality

Description

Constraints

zoom

integer

REQUIRED

zoom level, for which the global/selection value will be used

(info) no need to specify all 16 zoom levels - when one level is specified, the rest is computed as a result of a geometric series

2 .. 18

global

decimal

OPTIONAL

global scale value (= no marker selected)

x => 0.0

selection

decimal

OPTIONAL

selected scale value (= when a marker is selected)

x => 0.0

content.scaleOptions.defaultDistribution

This object allows you to set the default values (including outer breaks) of the indicator's corresponding indicator drill's distribution block. These settings are reset when a filter is applied.

Key

Type

Optionality

Description

Constraints

range

array

OPTIONAL

array of exactly 2 elements representing distribution range, i.e. lowest and highest value (integer or decimal)


breaks

array

OPTIONAL

array of distribution break values (integer or decimal)

size = 4 (standard, positive, negative, inverse, heat, heatmap, traffic, trafficInverse, magma and viridis scale)

size = 1 (binaryStandard and binaryNegative scale)

size = 5 (divergingStandard and divergingNegative scale)

displayIntervals

array

OPTIONAL

specifies which scale intervals should be displayed


Visual representation

Indicators are represented as a list of cards in a dashboard.

Turnover value indicator

In this area, the turnover value in selected time frame is 688,424 £.

Turnover value indicator after a mouse hover

Turnover value indicator with a mouse hover on the fitness

This ranks the area as 16th, which gives it a 90 percentile.

Turnover value indicator with a mouse hover on the Visualize button

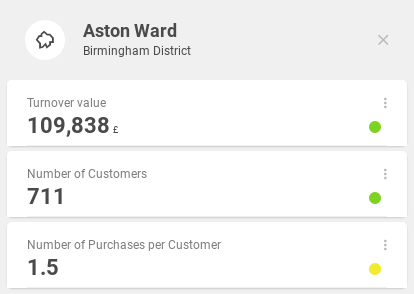

Three indicators in a specific area

Here, we see an area - Oscott ward in the Birmingham district, described by three indicators. They tell us that a total of 912 customers live in this area, and the average number of purchases per customer is 1.20. In the selected time frame, these customers generated 104,497 Â£ turnover.

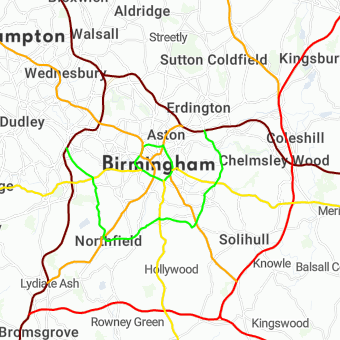

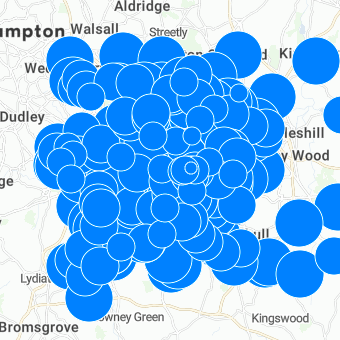

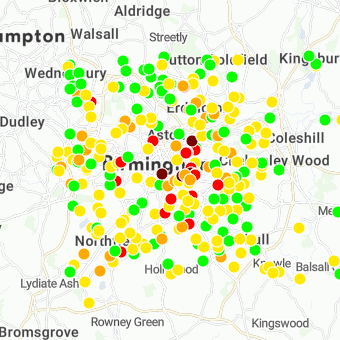

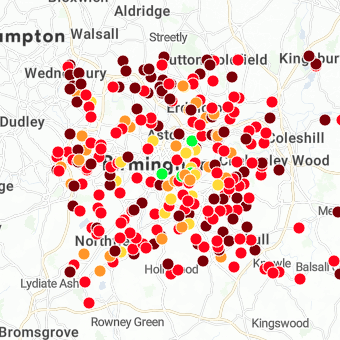

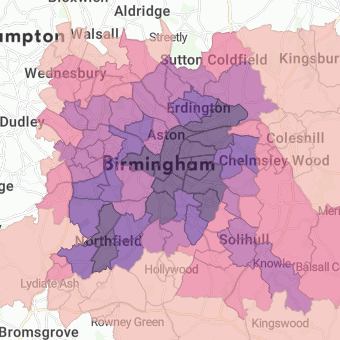

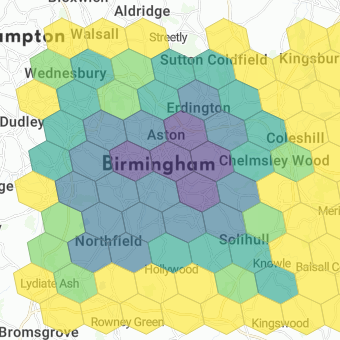

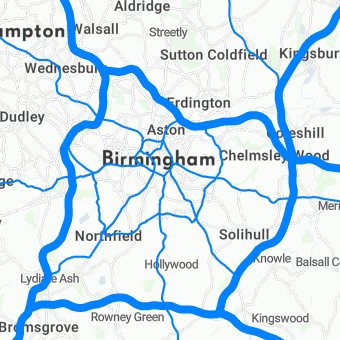

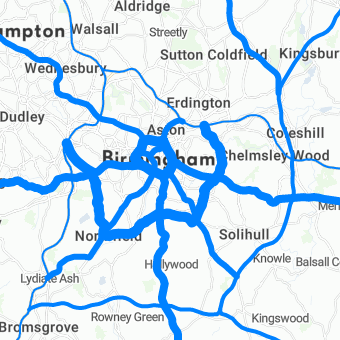

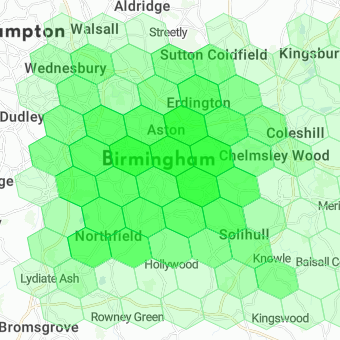

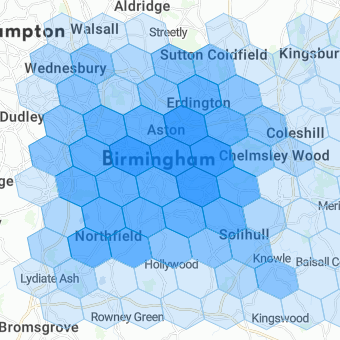

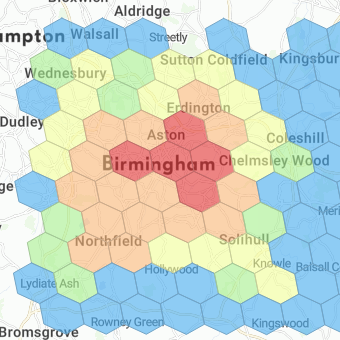

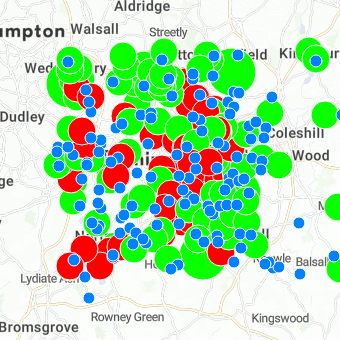

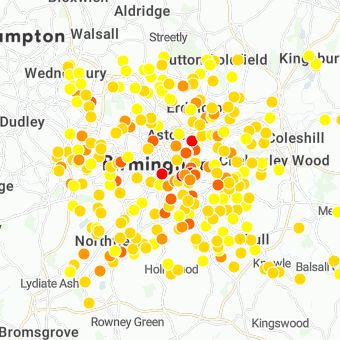

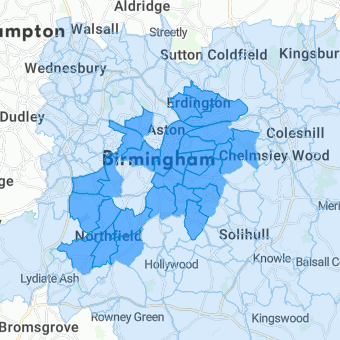

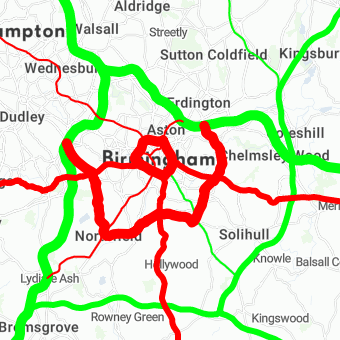

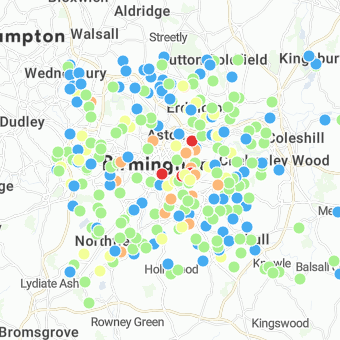

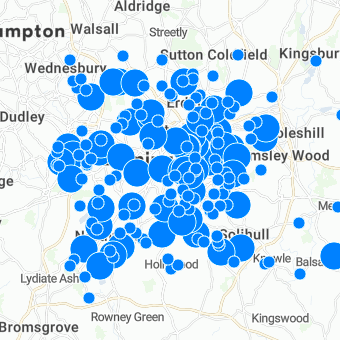

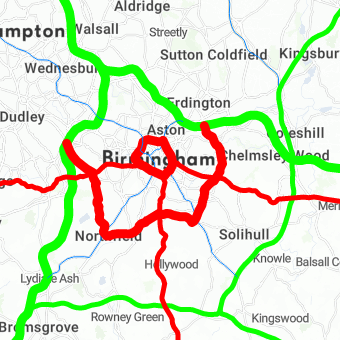

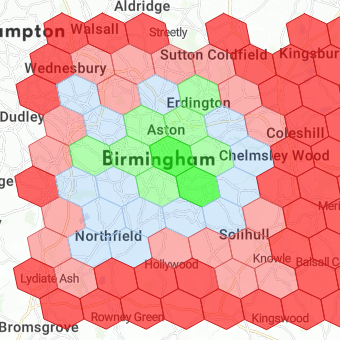

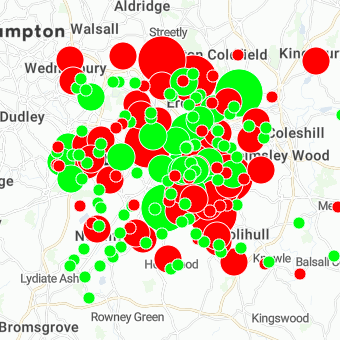

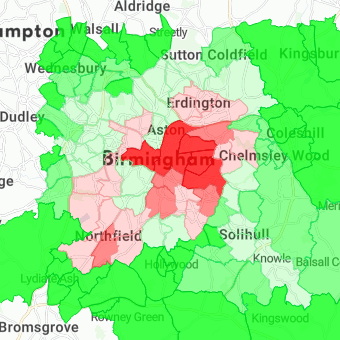

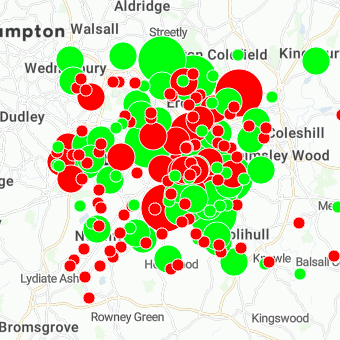

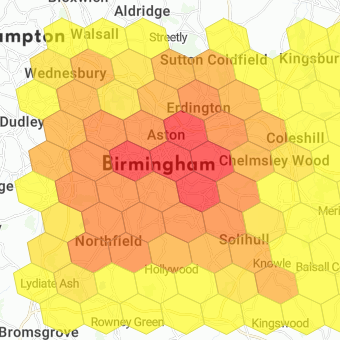

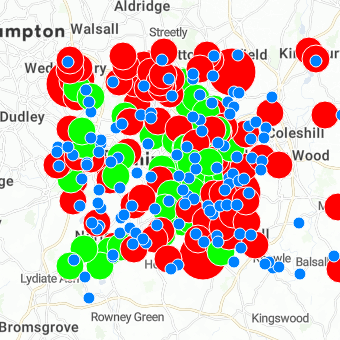

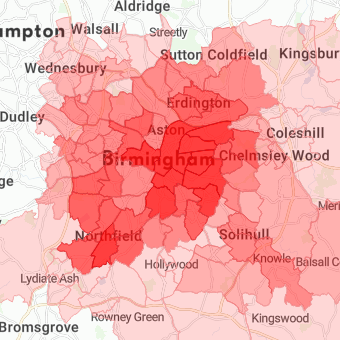

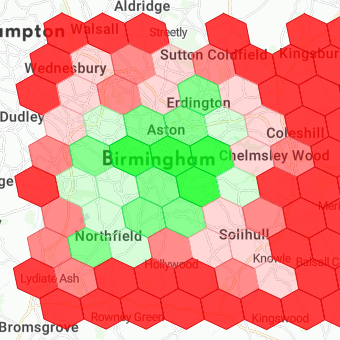

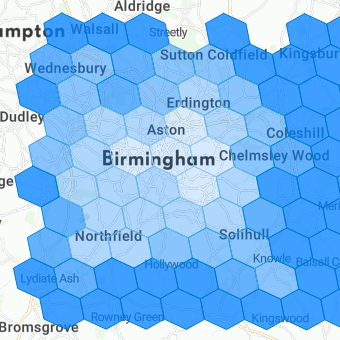

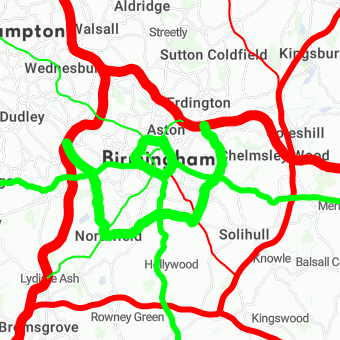

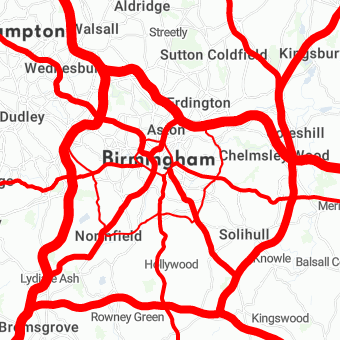

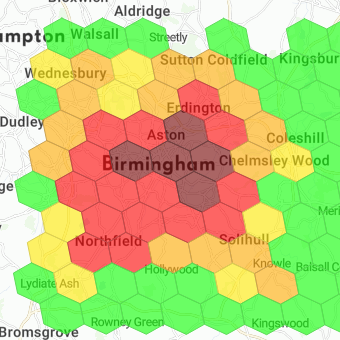

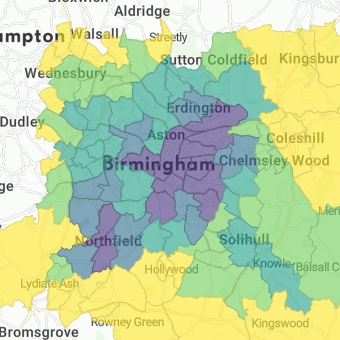

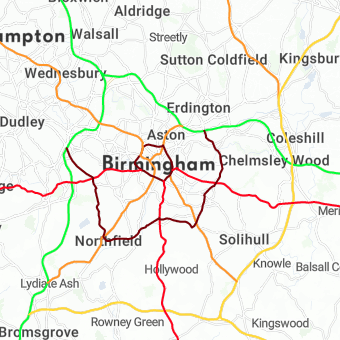

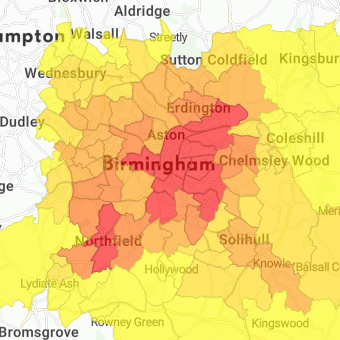

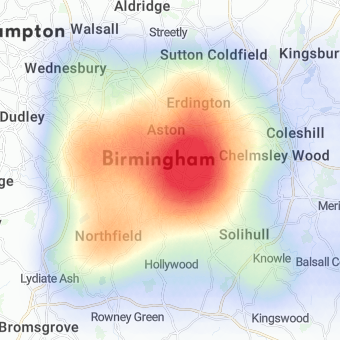

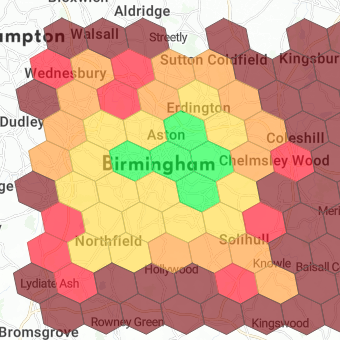

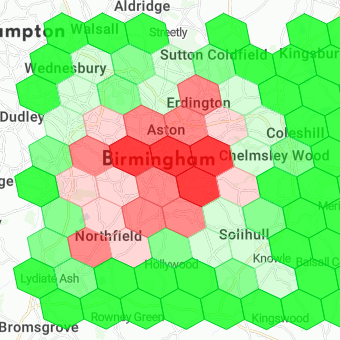

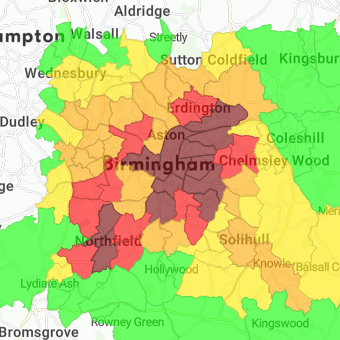

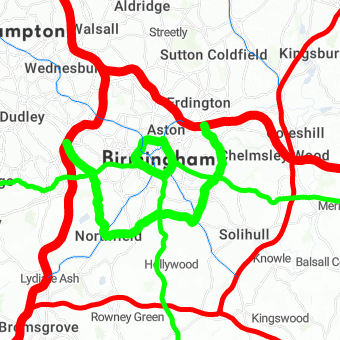

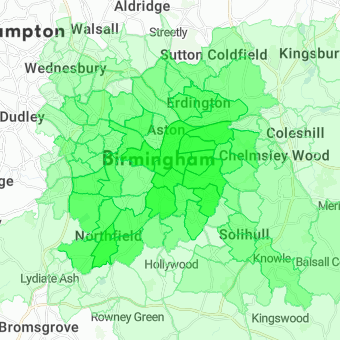

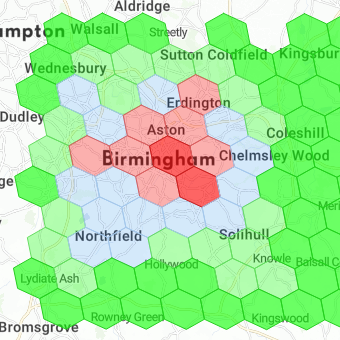

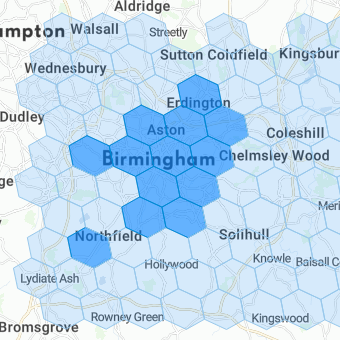

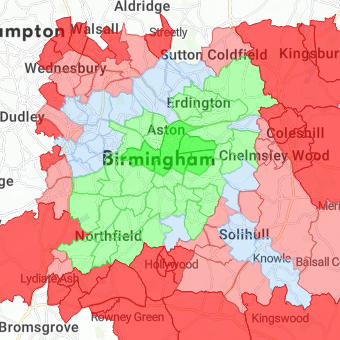

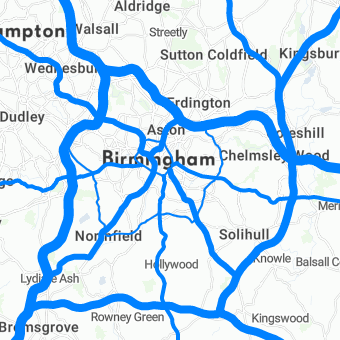

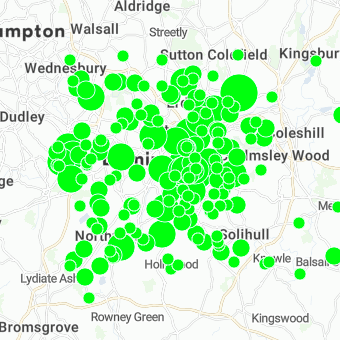

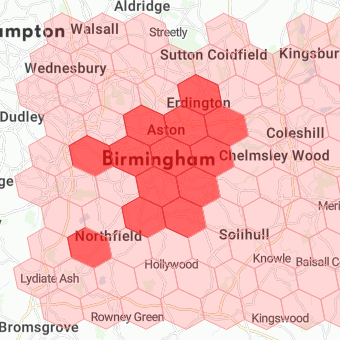

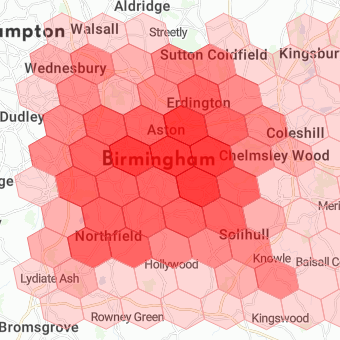

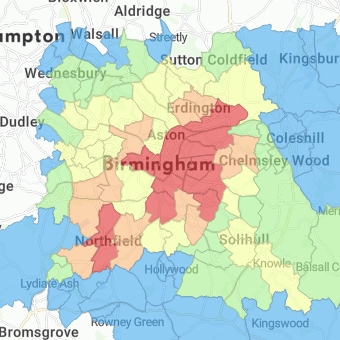

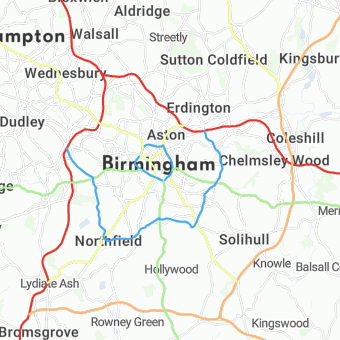

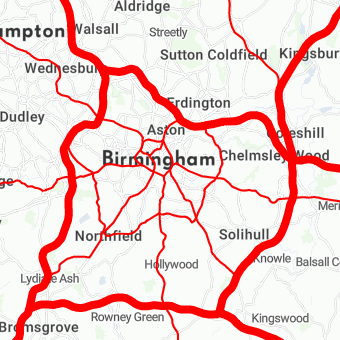

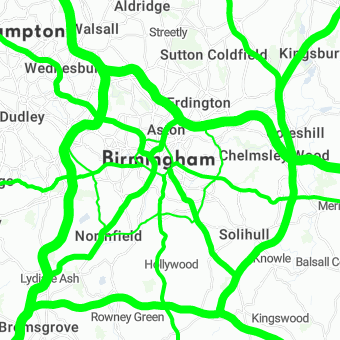

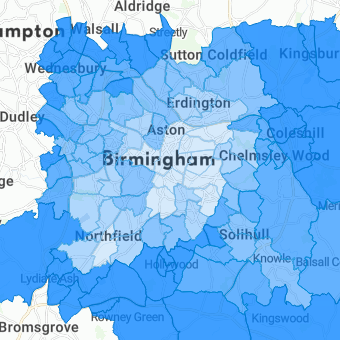

Indicator scales and visualizations

These are the possible combinations of indicator scale and visualizations. Please note that the heatmap visualization is only available with a standard scale.

scale / visualization

areas

grid

dotmap

line

heatmap





standard





positive





(error)





negative





(error)





inverse





(error)





binaryStandard





(error)





binaryNegative





(error)





divergingStandard





(error)





divergingNegative





(error)





divergingWithZeroStandard





(error)





divergingWithZeroNegative





(error)


scale / visualization

areas

grid

dotmap

lines

heatmap





heat





(error)





heatmap





(error)





traffic





(error)





trafficInverse





(error)





magma





(error)





viridis





(error)



JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
